- Commodity name: Challenger-5000 Perfect Binder
- Commodity ID: Challenger-5000
Challenger-5000 Binding System is an ideal binding solution for small to medium production runs with max. speed up to 5,000 cycles per hour. It features operational convenience, high productivity, flexible changeover for multiple binding methods, and quick return on invsetment.
Challenger-5000 Perfect Binder
Challenger-5000 Binding System is an ideal binding solution for small to medium production runs with max. speed up to 5,000 cycles per hour. It features operational convenience, high productivity, flexible changeover for multiple binding methods, and quick return on invsetment.
Outstanding Features:
♦ High net output at 5000 books/hour with thickness up to 50mm.
♦ Position indicators provide user-friendly operation and precise adjustments.
♦ Rigid nipping and cover scoring stations for strong and accurate binding.
♦ Europe imported spare parts guarantee strong and consistent performance.
♦ Flexible changeover between hot-melt EVA and PUR binding method.

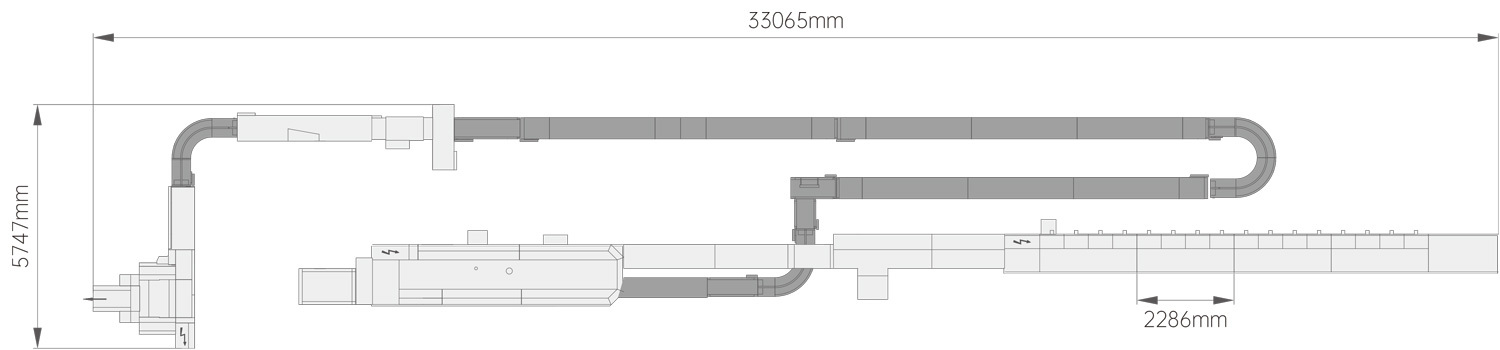

Machine Layout:
Key words:- JMD
- book binding
- book binder
- binding machine
- binding machinery
- perfect binder
- glue perfect binder
- book binding machine
- booklet binder
- binding equipment
- softcover binder
- pur binder
- glue binding machine
- perfect binding machine
-
15 Book Clamps
All book clamps opening are adjusted at a time. Adjustment is more convenient thanks to the position indicator, which can provide stable and reliable clamping force to ensure high accuracy of each production step.
Two Spine Preparation Stations
Space-saving designed spine preparation stations provide milling, notching, and brushing, which ensure the book spine is well prepared before glue application.
Gluing Application System
The standard configuration includes one hot-melt spine glue station and one side glue station.
Movable gluing stations allow easy changeover between PUR and EVA binding methods
Stream Cover Feeder and Scoring Station
Flat in-feed design of cover feeder allows stable loading and feeding of large quantity covers.
The specially designed dual-axis scoring rollers with large diameter enable straight and nice-looking scoring lines.
Nipping Station
Thanks to the accurate and reliable cam structure nipping mechanism, cover can be precisely and firmly nipped with the book block.
-
Machine Model
Challenger-5000
No. of Clamps
15
Max. Mechanical Speed
5000 c/h
Book Block Length (a)
140-460mm
Book Block Width (b)
120-270mm
Book Block Thickness (c)
3-50mm
Cover Length (d)
140-470mm
Cover Width (e)
250-640mm
